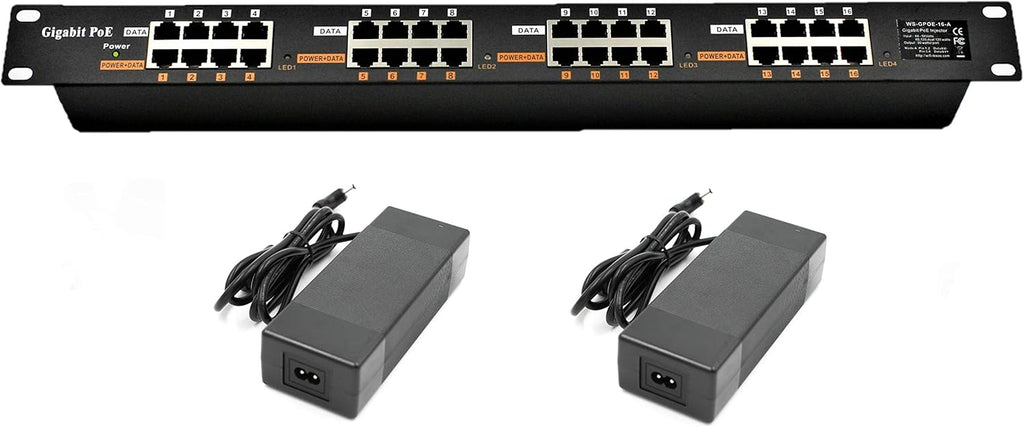

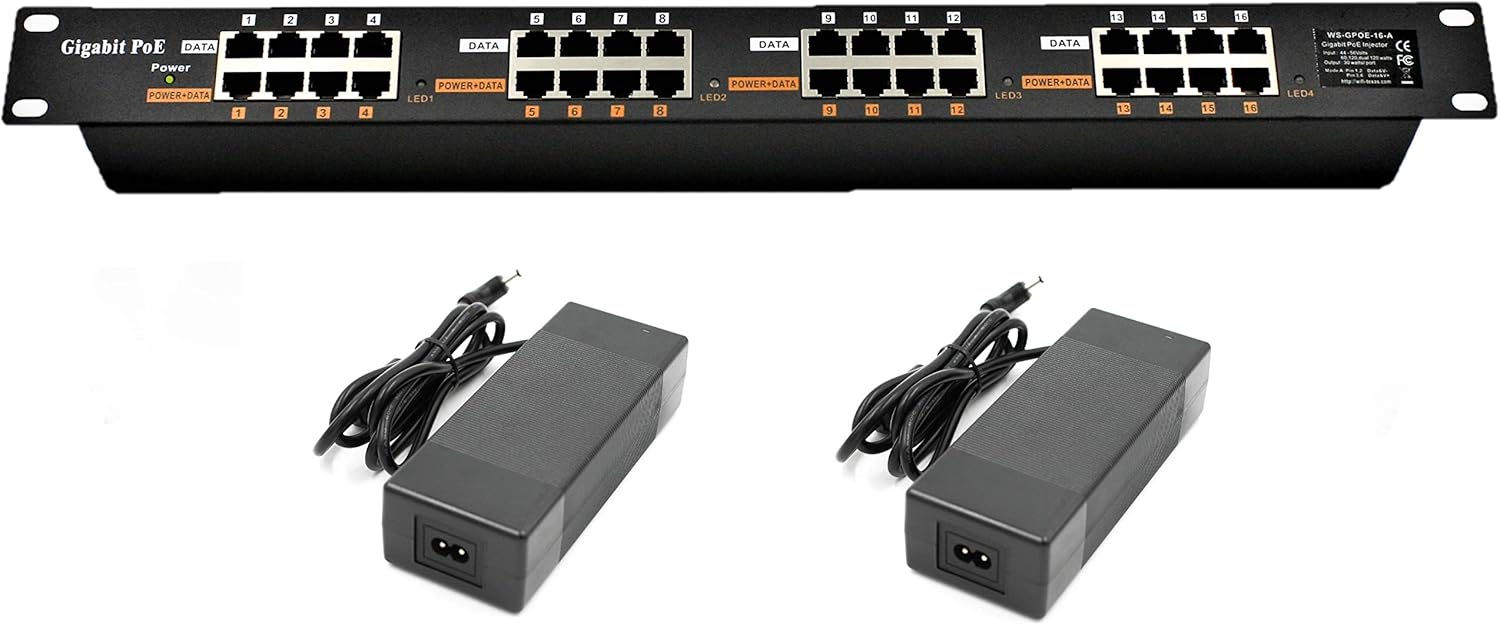

16 Port Gigabit Passive Power Over Ethernet Injector with 48 Volt Power Supply X21131

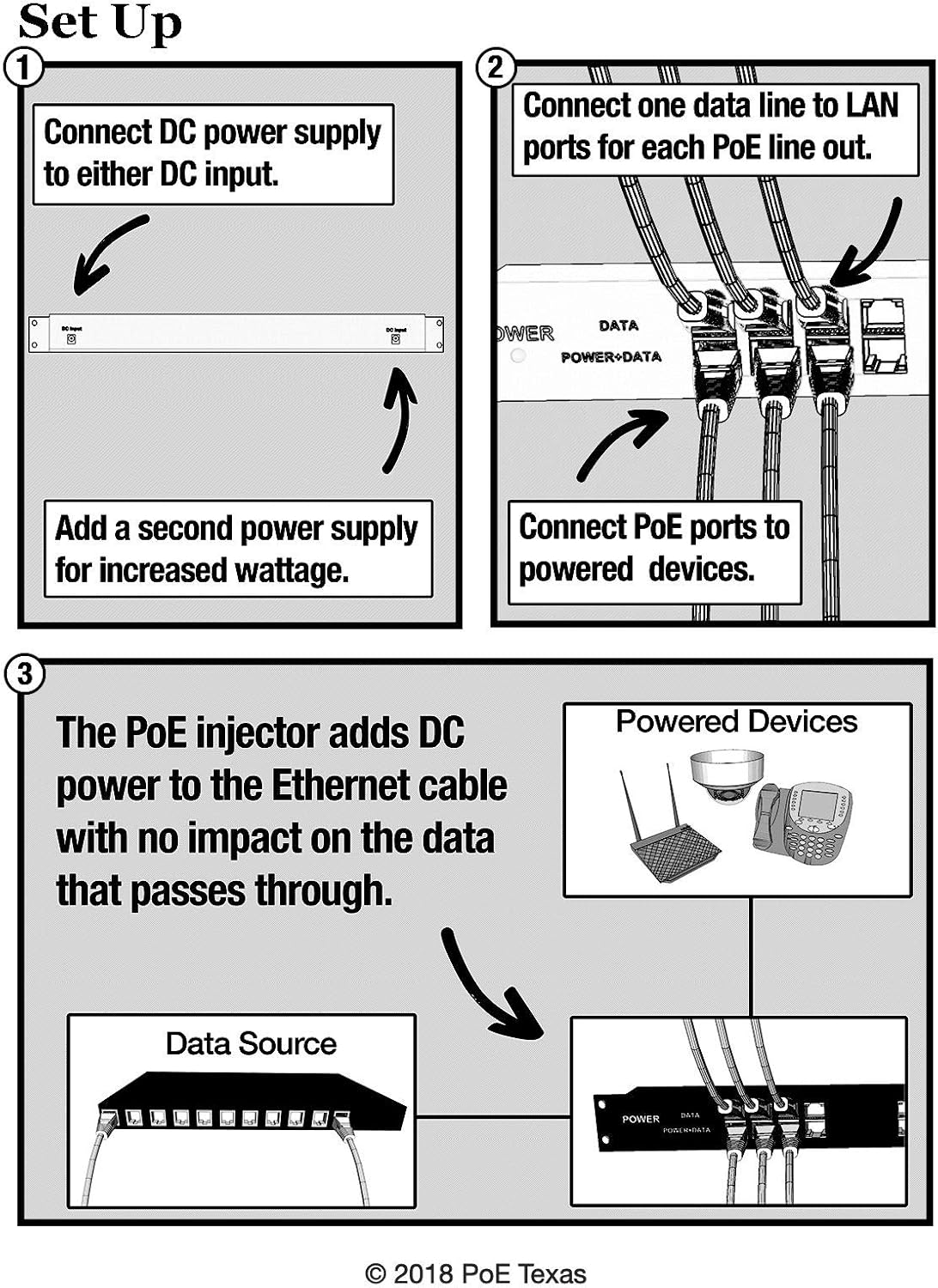

DescriptionThis 16 port midspan injector will add Power over Ethernet to your existing network switch. Using a midspan is a cost effective way to add to your existing infrastructure. Ideal for VOIP systems, cameras and other PoE enabled devices, it is designed to pass power on Mode A (pins 1,2 3,6) while using all 4 pairs to send 10/100/1000 gigbit data. The passive feature allows all devices to receive the same voltage (48v) - the total budget for all devices combined is 240 watts. Check device specifications for power needs.

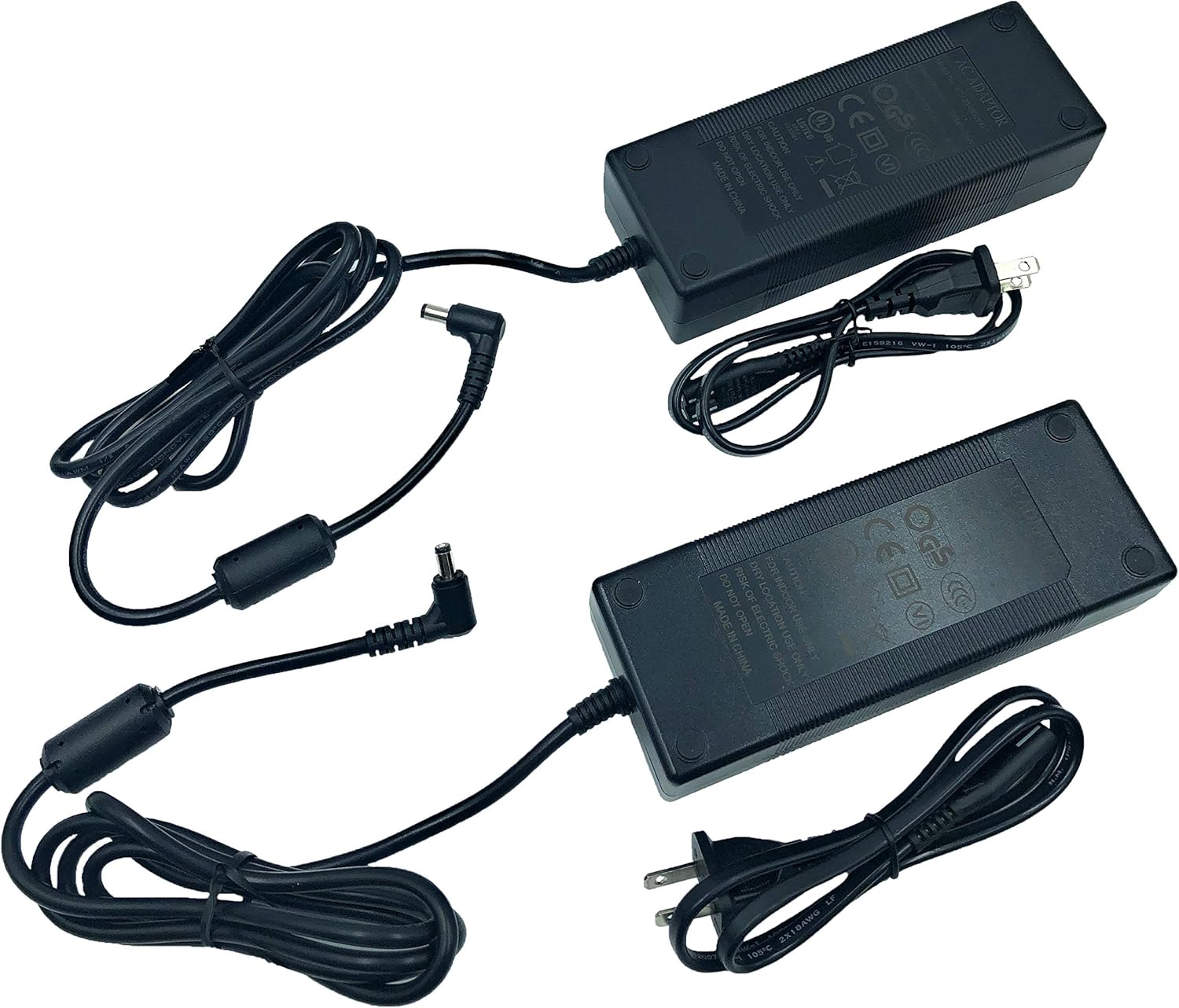

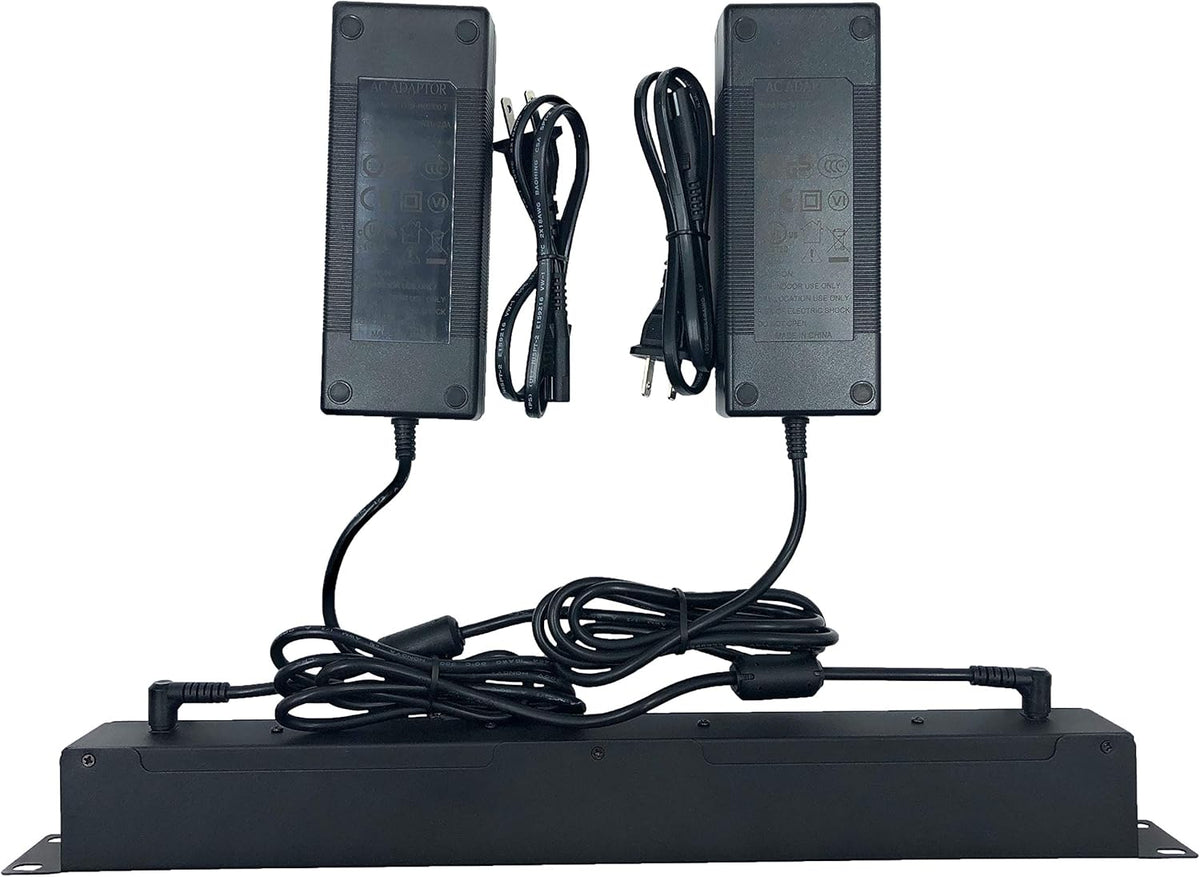

Product Features Instantly add 802.3af PoE to any network switch 10/100/1000 gigabit data rate capability Power up to 16 devices with 240 watts total power Two 48v 120w UL/CE/FCC approved power supplies included: 110 to 220 VAC operation; 90% efficiency Use to power IEEE 802.3af devices or devices labeled "12v,PoE" Shielded RJ45 ports: 16 data in (LAN), 16 Data + Power (PoE) out Extends power up to 328 ft or 100 meters Passive "always on power" delivers 48v from all ports

Applications IP phones WiFi Access points IP Cameras Devices labeled "12 volt, POE" - please see our video on this topic Other IEEE 802.3af devices To power our 802.3af 5v and 12v splitters for non-poe devices
