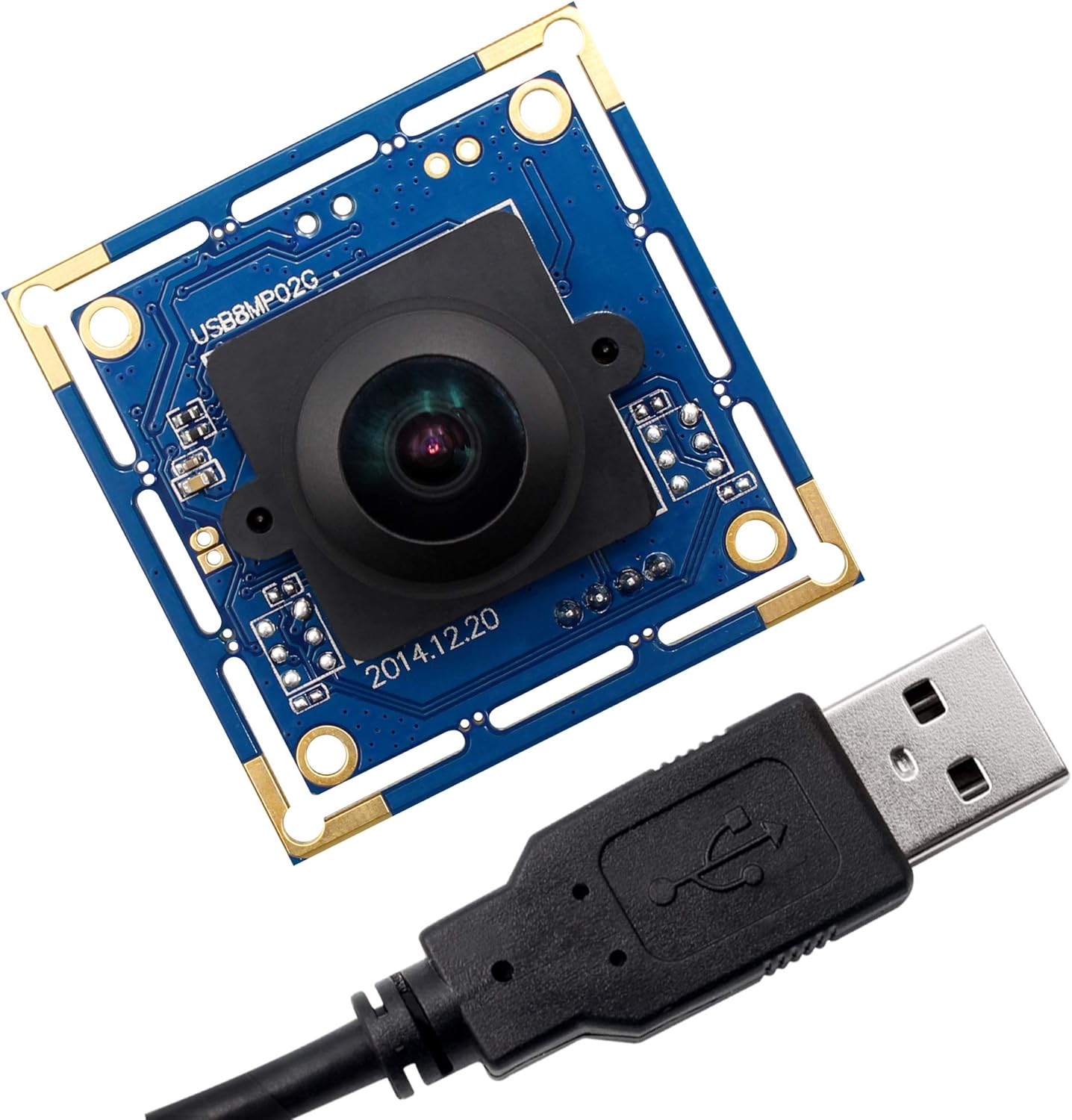

8 MP USB Camera Module with 180 Degree Fisheye Lens Webcam D95271
8 MP USB Camera Module with 180 Degree Fisheye Lens Webcam D95271
High Quality Sony IMX179 Image Sensor- 8 megapixel webcam with Sony IMX179 Sensor is the high standard in terms of image quality and sensitivity performance. Perfect for high leval video system for personal or industrial. Max.Resolution:3264(H)X2448(V):HighDefinition 1024x768@30fps/3200x2400@ 20fps/3264X2448@15fps.
Lower Color Reproduction Deviation- Webcam with High definition and lower Color reproduction deviation produce sharp image and accurate information,Super small and thin profile for embedded applications.Compact camera for all kinds of machine vision,Wide application for 3D scanner,VR camera,electronic microscope,medical machine,automated image acquisition system.
Quick Plug&Play- This usb camera module is easy to use, only plug and camera into computer USB port and running the software can make video display and recording work. No drive installation is required. Support USB 2.0 OTG, high speed usb 2.0 data transmission,occupy less bandwidth,greatly improved the working efficiency.
Best Universal Compatibility- 8MP webcam usb camera is versatile for Skype, OBS, Zoom, GoToMeeting, Facebook LIVE, and YouTube Livestreaming services, widely works with WinXP/Vista/Windows 7/8,Windows 10 Linux with UVC（above linux-2.6.26）MAC-OS X 10.4.8 or later Wince with UVC Android 4.0 or above with UVC.
Specification:
Sensor: Sony (1/3.2”) IMX179
Size: 38mm*38mm/32*32mm
Picture format MJPEG/YUY2 /USB Protocal USB2.0 HS/FS
Auto exposure AEC Support/Auto white blance AEB Support
Adjustable parameters Brightness/Contrast/Color saturation /Definition/Gamma/WB
Voltage DC 5V/current 150mA/work temperature DEGREES(-20~70)
Support OS 'WinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later
Effective Pixels:
3264X2448/3200X2400/2592X1944/2048X1536/1600X1200/1280X960/1024X768/800X600/640X480(Other special size resolution is customized)
Performance:
3264X2448 MJPEG 15fps YUY2 2fps/3200X2400 MJPEG 20fps YUY2 3fps
2592X1944 MJPEG 15fps YUY2 3fps/2048X1536 MJPEG 20fps YUY2 3fps
1600X1200 MJPEG 20fps YUY2 10fps/1280X960 MJPEG 20fps YUY2 10fps
1024X768 MJPEG 30fps YUY2 10fps/800X600 MJPEG 30fps YUY2 30fps
640X480 MJPEG 30fps YUY2 30fp
| 2 Megapixel usb camera module | 5 Megapixel fisheye lens usb camera | 1.3 MP synchronized dual lens usb camera | 2 Megapixel varifocal lens webcam | 8 Megapixel varifocal lens usb camera | 2 Megapixel Autofocus usb camera | |
|---|---|---|---|---|---|---|
| Image Sensor | CMOS OV4689 | Aptina MI5100 | CMOS OV9715 | CMOS OV2710 | IMX179 | CMOS OV2710 |
| Resolution | Max.1920X1080 | 2592 X 1944 | Max.2560HX960 | Max.1920X1080 | Max.3264X2448 | Max.1920X1080 |
| Frame | 260fps | 30fps | 60fps | 100fps | 30fps | 60fps |
| Lens | 100 Degree No Distortion lens | 170 degree fisheye lens | V90 Lens | 2.8-12mm | 5-50mm | 100 Degree No Distortion lens |
| Plug & Play | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Support OTG | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| System | Android/Linux/Window/Mac | Android/Linux/Window/Mac | Android/Linux/Window/Mac | Android/Linux/Window/Mac | Android/Linux/Window/Mac | Android/Linux/Window/Mac |
| Compression Fotmat | MJPEG / YUV2 | MJPEG / YUV2 | Mjpeg/YUY2 | Mjpeg/YUY2 | Mjpeg/YUY2 | Mjpeg/YUY2 |
| Mini Illumination | 0.01lux | 0.1lux | 0. 1lux | 0.01lux | 0.5lux | 0.01lux |
